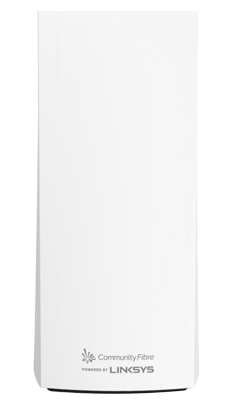

The Linksys SPNMX42CF-UK for Community Fibre ISP supports the latest Wi-Fi® 6 (802.11ax) standard to deliver lag-free and simultaneous streaming to any device.

With the powerful WiFi 6 Mesh coverage, this is designed to deliver gigabit WiFi speeds to every corner of your home, including the backyard and outdoor smart home devices.

The Linksys SPNMX42CF-UK is for Community Fibre ISP subscribers in the United Kingdom.

IEEE 802.11ax

Up to 4.2 Gbps speed

Tri-Band

Backward compatible with 802.11a/b/g/n/ac

Eight spatial streams

Nine internal antennas

1.4 GHz quad-core processor

Intelligent Mesh™

Easy Setup

Band steering

Bluetooth® 4.0/LE

WiFi security

Beamforming

Guest Network

Parental Controls

Wi-Fi Protected Setup™ (WPS)

Supports Dynamic Host Configuration Protocol (DHCP)

Prioritization for Zoom and Microsoft® Teams

Supports Automatic Setup via Auto Configuration Server (ACS)

Supports Axiros Dashboard

Supports TR-069 / TR-181

Coverage of up to 2,700 sq ft per node

Ports:

Three gigabit ethernet ports
One gigabit internet port
Power port (12V, 3A)
One USB 3.0 port for external storage support. The supported formats are as follows:

Windows®: NTFS and FAT32
Mac®: FAT32 and HFS+ (journaled, non-journaled)

Supports SMB v2.0
UPnP®
Supports up to 900mA current draw

Buttons and switch:

Reset button

To reset the node to its factory defaults, press and hold the reset button first (you will see a bright red flash, followed by three to four quick red faded pulses then another bright red flash) before releasing the button.

WPS button
One power switch (sliding)


Weight: 0.95 kg (2.15 lb)
Dimensions: 4.45 in x 4.45 in x 9.57 in

A modem or gateway with an active internet connection by Community Fibre

Latest iOS or Android™ mobile device

Latest version of the Linksys app

Bluetooth (preferred for setup)

Linksys SPNMX42CF-UK

Quick install guide

Ethernet cable

Power adapter 12V, 3A
