Product Features

• 802.11ax
• Up to 4.2 Gbps
• Tri-Band
• Eight Spatial Streams
• 1.4 GHz quad-core processor
• Intelligent Mesh™
• Easy Setup
• WiFi security
• Seamless Roaming
• Guest Network
• Parental Controls
• Mobile Gaming
• Supports Internet Protocol television (IPTV)
• Coverage of up to 2,700 sq ft per node

Hardware

• Ports:
  • Three gigabit ethernet ports
  • One gigabit internet port
  • Power port (12V, 3A)
  • One USB 3.0 port for external storage support. The supported formats are as follows:
    • Windows®: NTFS, FAT32
    • Mac®: FAT32, and HFS+ (journaled, non-journaled)
    • Supports SMB v2.0
    • UPnP®
    • Supports up to 900mA current draw
• Buttons and switches:
  • Reset button

    To reset the node to its factory defaults, press and hold the button first (you will see a bright red flash, followed by three to four quick red faded pulses, then another bright red flash), then you can release the button.
  • WiFi Protected Setup™ (WPS) button
  • One power switch (sliding)
• Weight: 0.95 kg (2.15 lb)
• Dimensions: 4.45 in x 4.45 in x 9.57 in

Product Requirements

• A modem or gateway with an active internet connection
• Latest iOS or Android™ mobile device
• The latest version of the Linksys app
• Bluetooth® (preferred for setup)

Package Contents

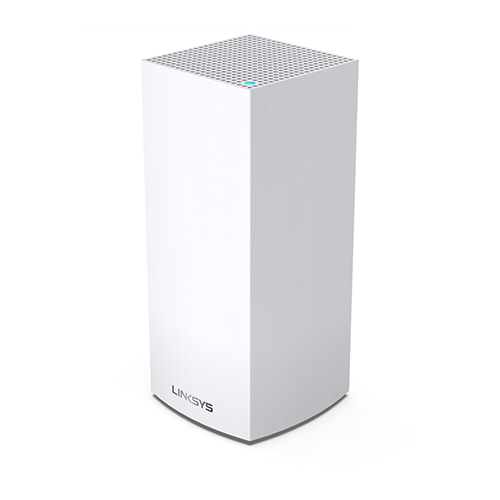

• Linksys MX42SH-SG
• Quick install guide
• Ethernet cable
• Power adapter 12V, 3A
