Understanding the Linksys Now Instant-Verify settings
print icon

Instant-Verify provides an overview of your network status.






Instant-Info



The Instant-Info tab will provide you with a quick summary of the router.



1. Log in to the router’s web interface and click Menu > Instant-Verify > Instant-Info.

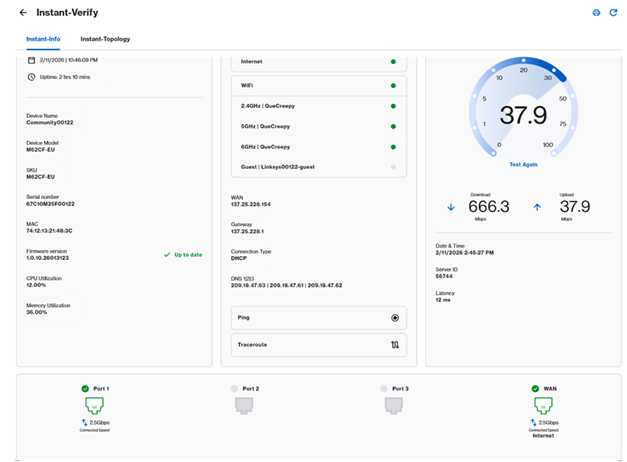

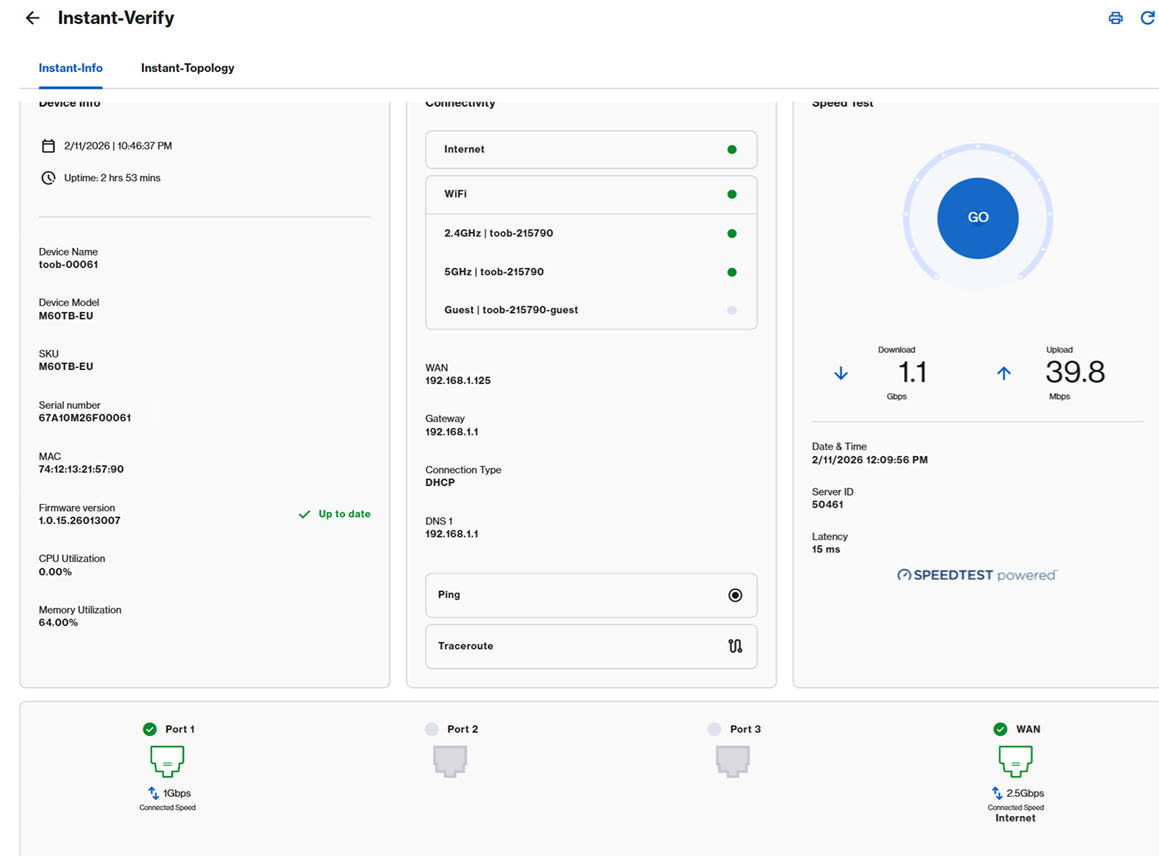

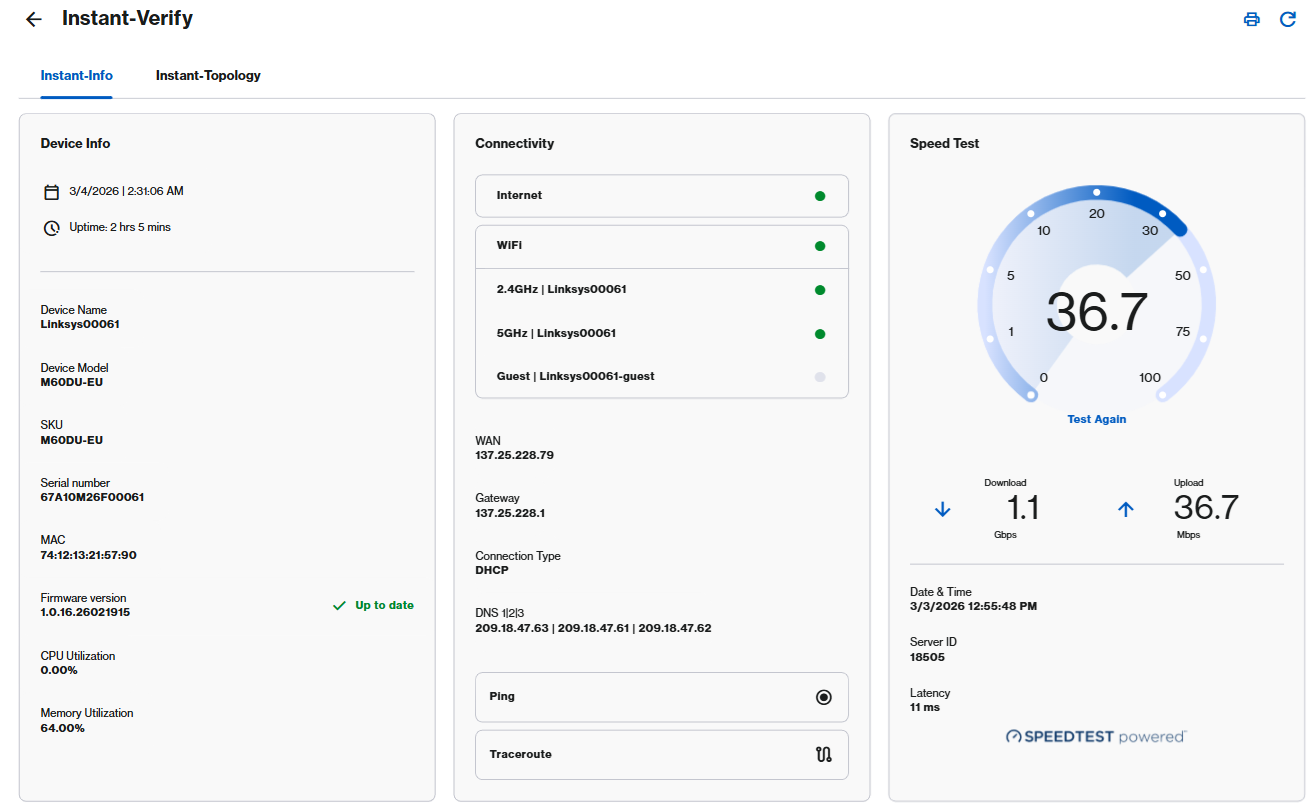

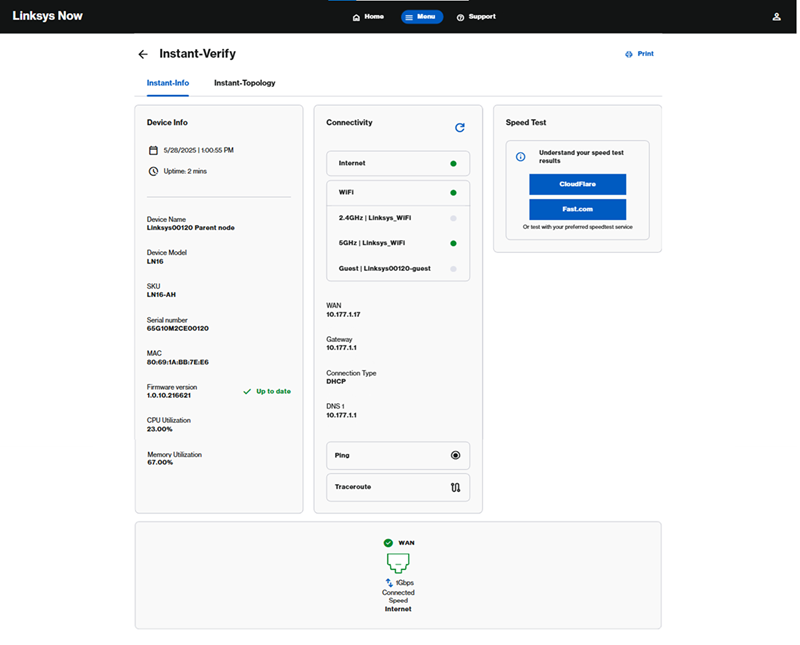

An image of the Instant-Verify page of the Linksys Now web interface


Device Info

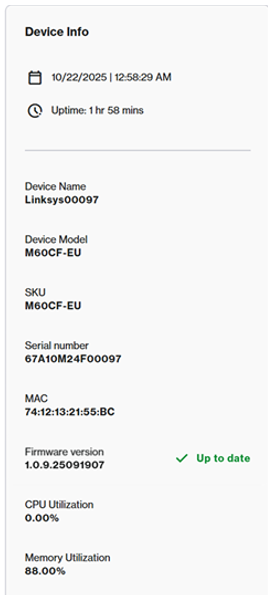

An image showing the Device Info tile on the Instant-Verify page of the Linksys Now web interface.



The Device Info tile displays the following information:



  • Current time and date, and uptime
  • Device name with the last five digits of the router’s serial number (Linksysxxxxx)
  • Model series, SKU, serial number, and MAC address
  • Current firmware version, along with CPU and memory utilization

Connectivity

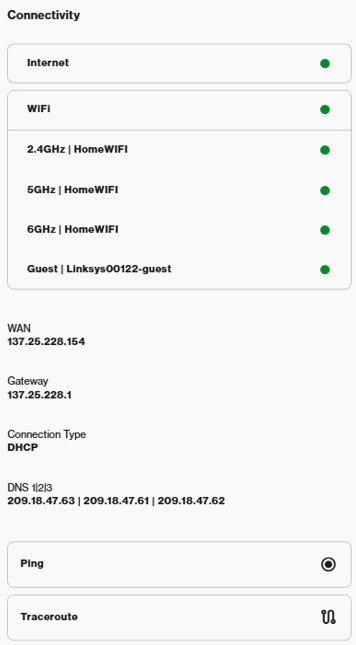

An image showing the Connectivity page within the Instant-Verify settings of the Linksys Now web interface.



Ping Network Settings on the Linksys Now router's web interface, with options to Execute or Close ping test.



The Connectivity tile displays the following settings:



  • Internet status
  • WiFi status - Go to the Incredible WiFi tile to configure the WiFi settings.
  • WAN IP address and connection settings - To configure the internet settings, DHCP server, or DNS settings, go to  Advanced Settings.
  • Ping tool
  • Traceroute tool

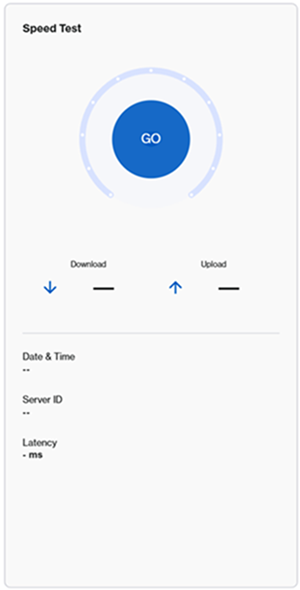

Speed Test



Run a speed test using CloudFlare or Fast.com.

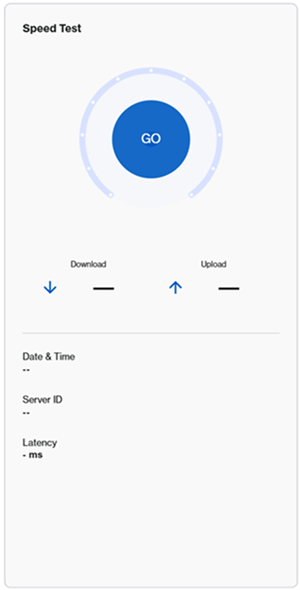

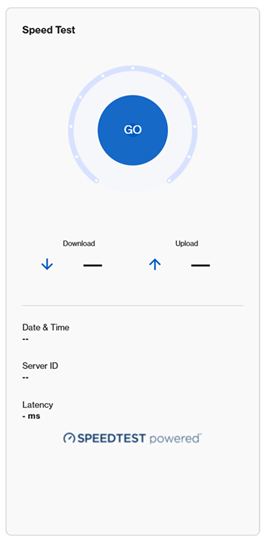

An image displaying the Speed Test option on the web interface, featuring CloudFlare and Fast.com as testing choices.


Internet Port



At the bottom of the tab, you will see the physical link of the parent node’s internet port, which can show the speed depending on the device connected to the port.

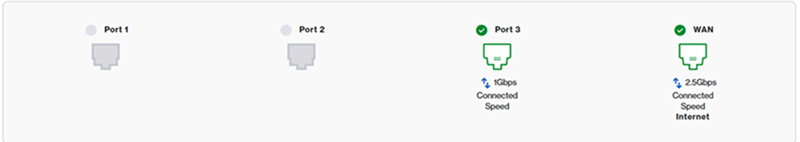

An image displaying two ports with their respective internet speeds: one at 2.5Gbps and the other at 1Gbps.






Instant-Topology



In the Instant-Topology tile, you can view detailed information about the arrangement of the nodes and how they are connected to your network. Learn more
