How to add a second network to an existing Linksys Pinnacle Mesh network

If you have an existing Linksys Pinnacle Mesh network but would like to add a separate network using Linksys SPNM60 or SPNM62, follow the steps in this article.

Hardwiring the Linksys Pinnacle Mesh router to the upstream network may result in the second router being added as a wired child node instead of another parent router. All Linksys Pinnacle Mesh routers support wired onboarding by default. To prevent this issue in this type of scenario, we are going to set up the second router (network) without any ethernet cables first.

Example

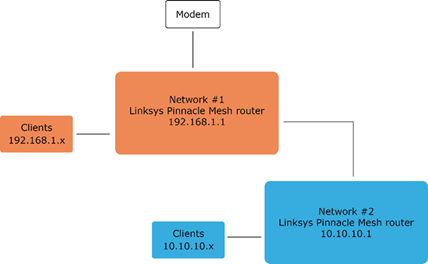

Network diagram

1. Disconnect any ethernet cables from router #2 and power it ON, wait until the light turns solid blue, which indicates it is ready for setup.

Router with solid blue light

Ready for setup

If the light is red, hold down the reset button for about 20 seconds until the light turns solid blue.

Router with solid Red light

2. Press the Pair button on the bottom of the router #2 for at least 1 second. The light will begin blinking white. DO NOT CONNECT ANY ETHERNET CABLES.

This ensures that the router is being converted into a parent Mesh router and will then check for internet connectivity which will fail as expected.

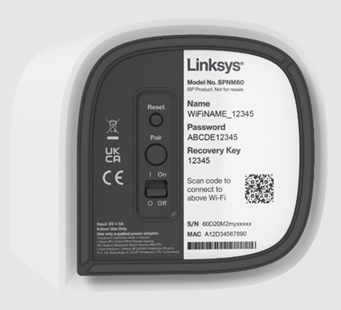

Bottom of the router

Router with blinking white light

Setup in progress

3. Wait until the light turns solid red. This indicates that the router has been converted into a parent Mesh router but has not detected any internet connection, as expected.

Router with solid red light

4. Now connect an ethernet cable from the Internet 1 port of router #2 to any LAN port on router #1.

Router showing the Internet port Router showing the LAN port

5. Wait until the light turns solid white. Once the light turns solid white, the router has now detected an Internet connection.

Your second Mesh network is now ready to use. The default WiFi credentials are located on the bottom of router #2.

Router with solid white light

Router #2 - Ready to use

If you need to configure the Internet settings manually, determine the new IP address of router #2 first. Then simply log in to the router by its IP address and go to Menu > Advanced Settings.
