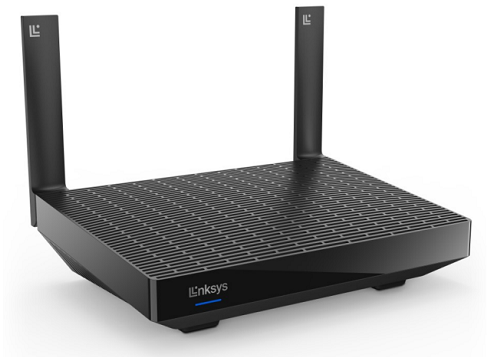

Meet the Linksys MR20MS
print icon
Find out more >
Product Features
  • Intelligent Mesh technology
  • Wi-Fi® 6 (802.11ax)
  • Dual-band AX2200
  • 2x2 Spatial streams
  • Beamforming technology
  • Guest network
  • WiFi security
  • Parental Controls
  • Covers up to 1,500 sq ft
  • Supports parent and child mode
  • Wall mountable
Hardware
  • 1 GHz dual-core processor
  • Buttons and Switch
    • Reset button
    • Wi-Fi Protected Setup™ (WPS) button
    • Rocker-style power switch
  • Ports
    • Four gigabit ethernet LAN ports
    • One gigabit internet port
    • One USB 3.0 port for external hard drive support only
    • Supports NTFS, FAT32, FAT, and HFS+
    • Supports a current draw of up to 900mA
    • One power port (12V, 1.5A)
  • Indicator lights
    • Status light
    • Ethernet (LAN) port lights
    • Internet port light
    • USB activity light
  • Two adjustable external antennas
  • Weight: 1.51 lb (687 g)
  • Dimensions: 8.46  x 6.10  x 2.20 in (215 x 155 x 56 mm)
Product Requirements
  • Internet connection
  • The latest version of the Linksys app
  • An iOS/Android™ mobile device or a WiFi computer for setup
  • Bluetooth® (preferred for setup)
  • Linksys cloud account for remote access
Package Contents
  • One Linksys MR20MS
  • Ethernet cable
  • Power adapter
  • Quick start guide
